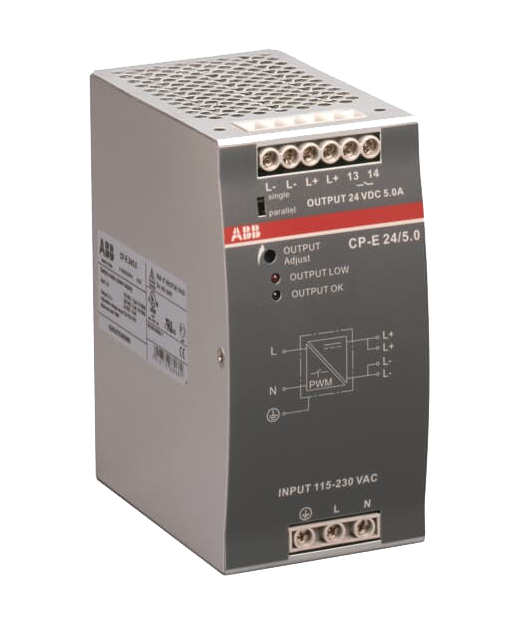

ABB CP-E 24/5.0 Power supply In:115/230VAC Out: 24VDC/5A

General Information

• Extended Product Type:

  CP-E 24/5.0


• Product ID:

  1SVR427034R0000


• EAN:

  4016779669689


• Catalog Description:

  CP-E 24/5.0 Power supply In:115/230VAC Out: 24VDC/5A


• Long Description:

  The CP-E 24/5.0 is a power supply from the CP-E range. The primary switch mode power supply offers a wide range input of 90-132 V AC, 180-264 V AC and 210-375 V DC, rated input voltage is 115 or 230 V AC (auto select). The rated output power is 120 W, rated output current is 5 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 22.5 to 28.5 V DC. The power supply provides an U/I output characteristic. In order to increase capacity, up to 3 units can be connected in parallel. A redundancy unit is available as accessory.
