Contact us for further information or support in product selection on the wider ACS180 Machinery Drive Family. This product represents the simplest configuration of the drive.
General Information
Global Commercial Alias:
ACS180-04S-02A4-1
Product ID:
3AXD50000716562
ABB Type Designation:
ACS180-04S-02A4-1
EAN:
6438177649137
Catalog Description:

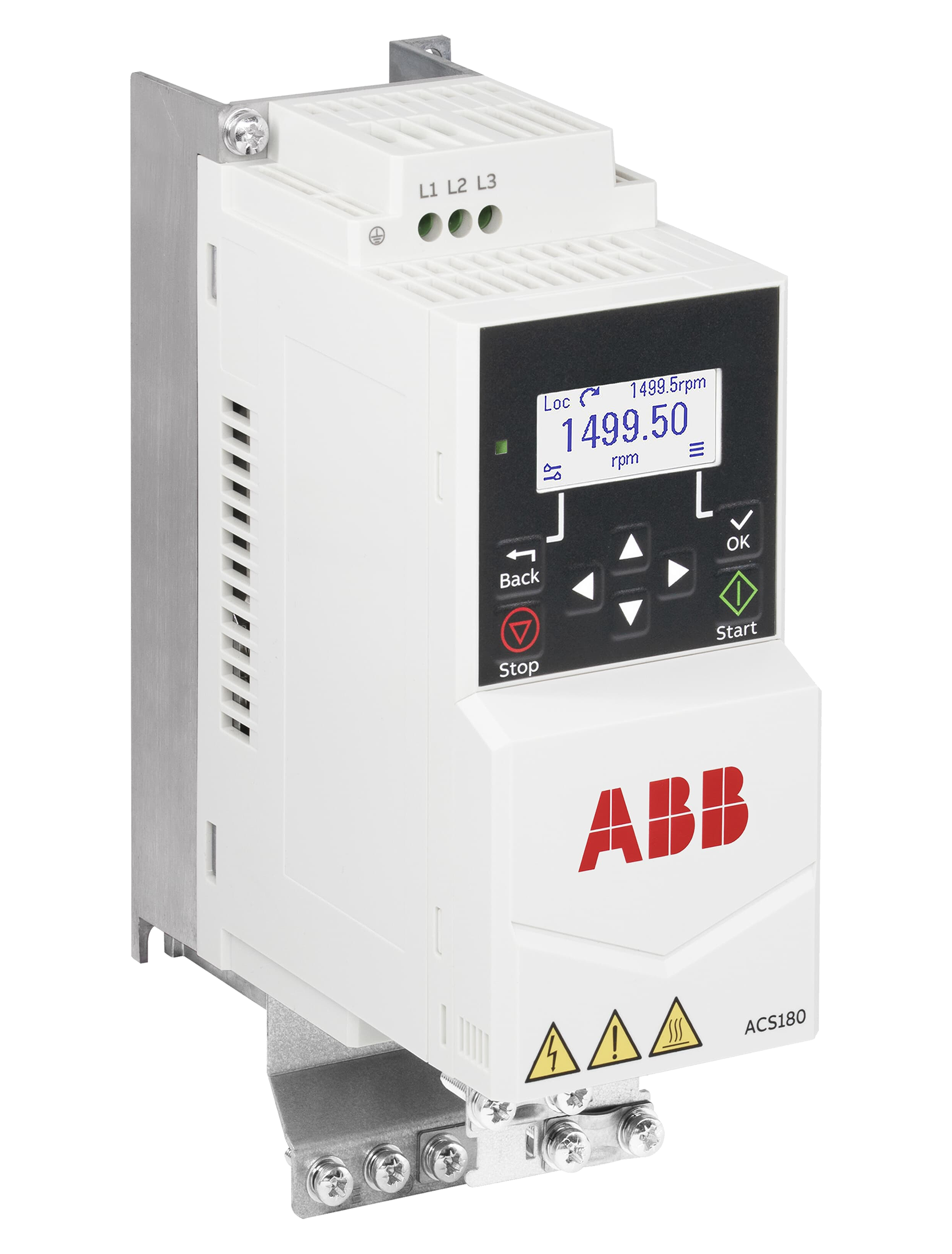

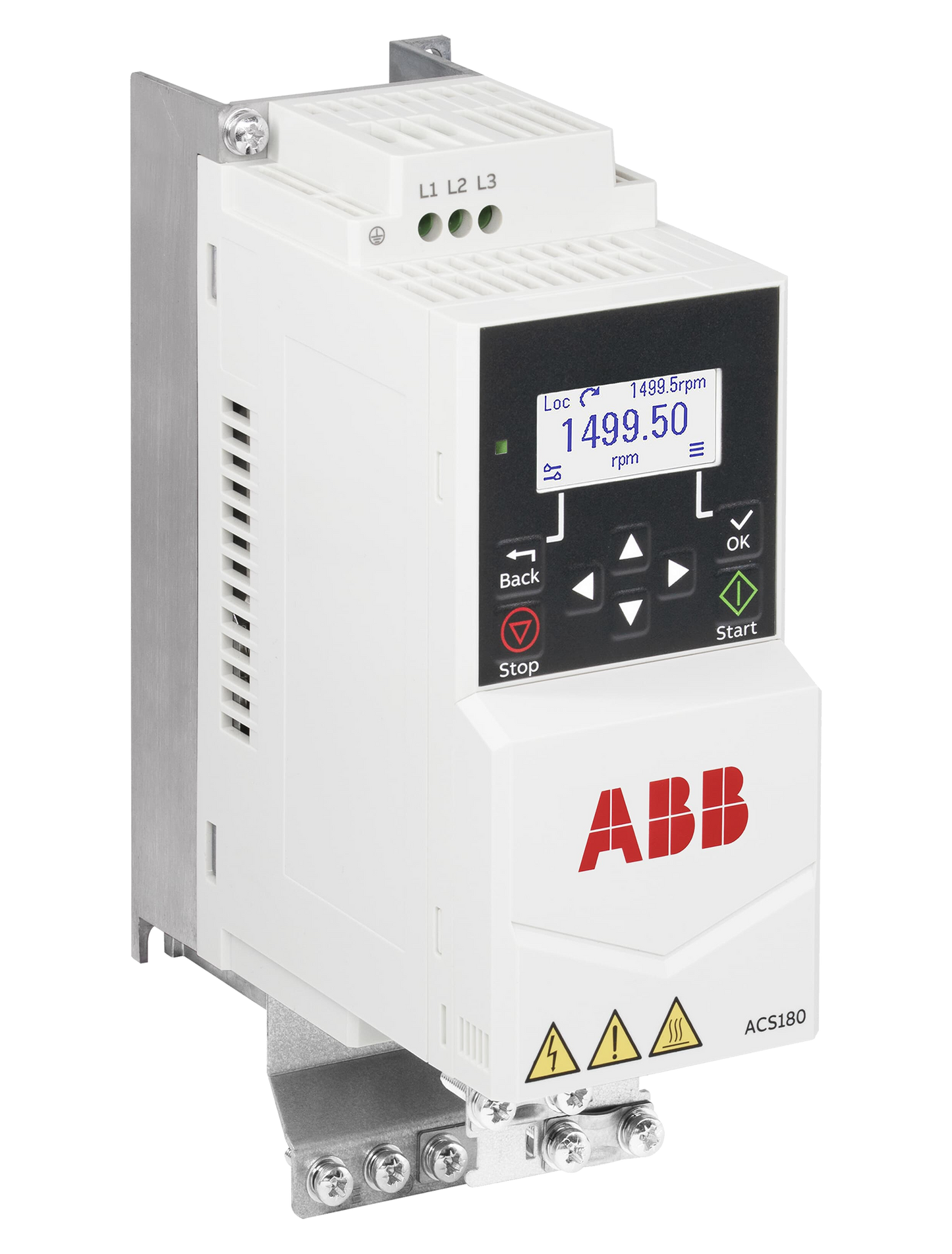

LV AC machinery drive module, IEC: Pn 0.37 kW, 2.4 A, 230 V, UL: Pld 0.5 Hp, 2.4 A, 230 V (ACS180-04S-02A4-1)
Long Description:

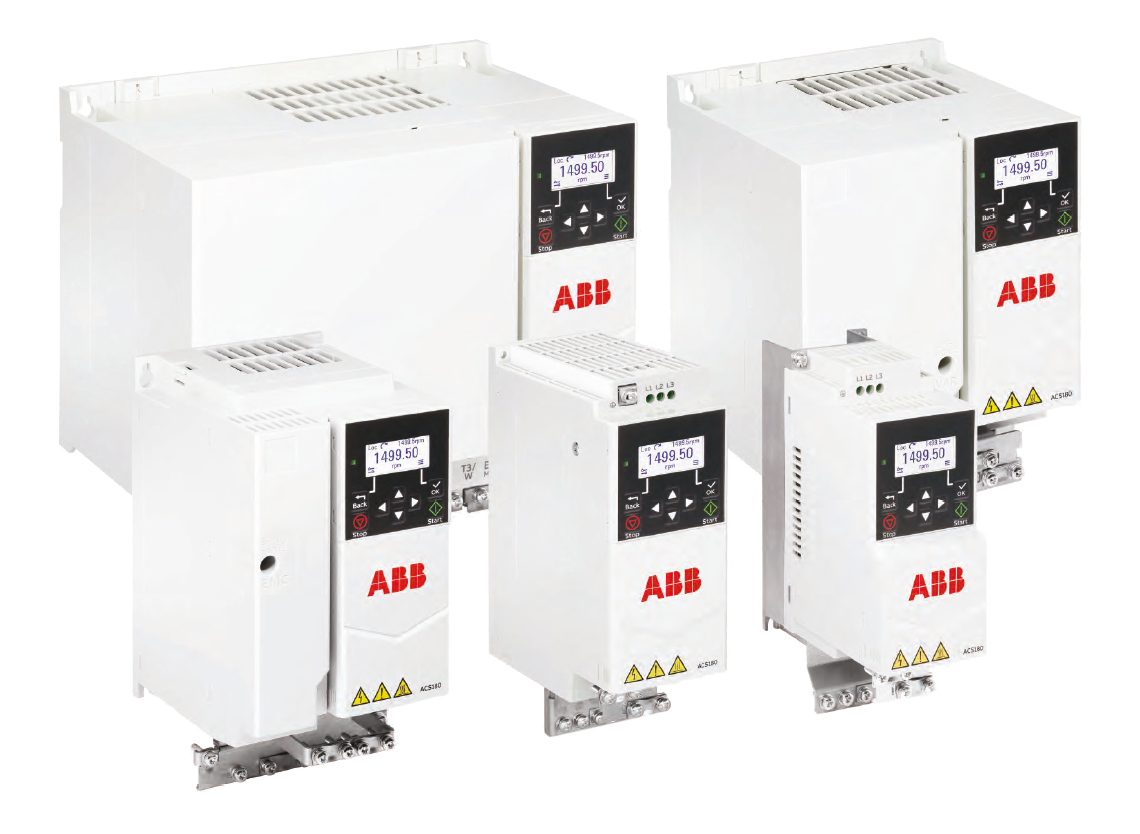

The ACS180 is a compact and robust adaptable variable speed drive (VSD) for applications such as pumps, fans, compressors, conveyors, winders and mixers. This easy-to-use compact VSD offers excellent performance and quality at superior value with all essential machinery application features embedded. And as a member of ABB’s all-compatible drives portfolio, it shares the same architecture and user interfaces for ease of use.
Technical
Number of Phases: 1 Degree of Protection: IP20 Enclosure Type NEMA: Open Type Altitude: 1000 m Operating Humidity (RHamb): 5 ... 95 Power Factor: 0.98 Multiple Battery Information: No battery / cell included Frequency (f): 47 ... 63 Hz Frame Size: R0 Input Voltage (Uin): 200 ... 240 V Mounting Type: Module Communication Protocol: MODBUS
Number of Hardware Interfaces: Industrial Ethernet 0 Other 1 Parallel 0 PROFINET 0 RS-232 0 RS-422 0 RS-485 1 Serial TTY 0 USB 0
Includes: Control unit, PC connection Analog Inputs: 2 Analog Outputs: 1 Number of Digital In/Outputs: 4 / 2 Output Current, Heavy-Duty Use (IHD): 1.8 A Output Current, Light-Overload Use (ILD): 2.4 A Output Current, Normal Use (In): 2.4 A Output Power, Heavy-Duty Use (PHD): 0.25 kW Output Power, Light-Overload Use (PLD): 0.37 kW Output Power, Normal Use (Pn): 0.37 kW Apparent Power Output: 1 kV·A
Complete Drive Module Efficiency (61800-9-2): Operating Point Frequency / Current 0/25 % 0/50 % 0/100 % 50/25 % 50/50 % 50/100 % 90/50 % 90/100 %
