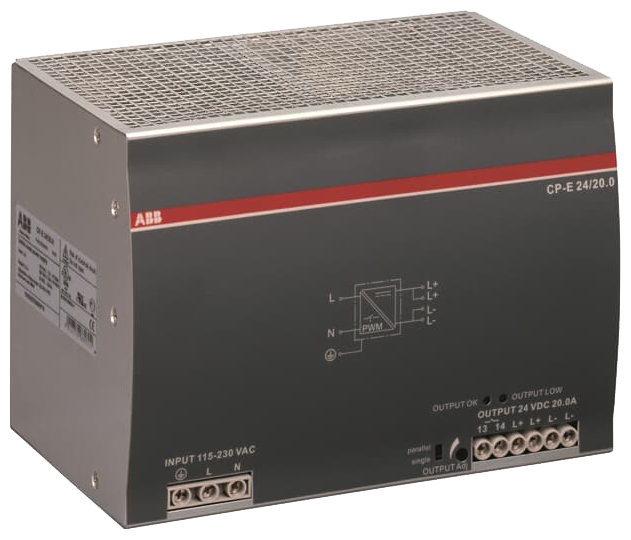

ABB CP-E 24/20.0 Power supply In:115/230VAC Out: 24VDC/20A

General Information

• Extended Product Type:

  CP-E 24/20.0


• Product ID:

  1SVR427036R0000


• EAN:

  4016779669702


• Catalog Description:

  CP-E 24/20.0 Power supply In:115/230VAC Out: 24VDC/20A


• Long Description:

  The CP-E 24/20.0 is a power supply from the CP-E range. The primary switch mode power supply offers a wide range input of 90-264 V AC and 120-375 V DC, rated input voltage is 115-230 V AC. The rated output power is 480 W, rated output current is 20 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 22.5 to 28.5 V DC. The power supply provides an U/I output characteristic. In order to increase capacity, up to 3 units can be connected in parallel. A redundancy unit is available as accessory.
