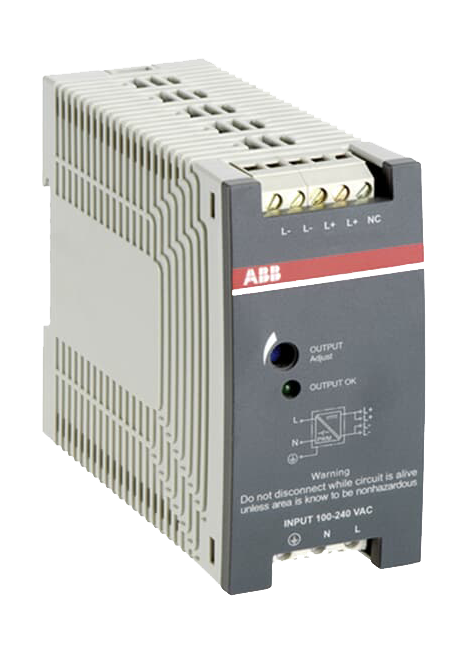

ABB CP-E 24/2.5 Power supply In:100-240VAC Out: 24VDC/2.5A

General Information

• Extended Product Type:

  CP-E 24/2.5


• Product ID:

  1SVR427032R0000


• EAN:

  4016779656887


• Catalog Description:

  CP-E 24/2.5 Power supply In:100-240VAC Out: 24VDC/2.5A


• Long Description:

  The CP-E 24/2.5 is a power supply from the CP-E range. The primary switch mode power supply offers a wide range input of 85-264 V AC and 90-375 V DC, rated input voltage is 100-240 V AC. The rated output power is 60 W, rated output current is 2.5 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 24 to 28 V DC. The power supply provides a U/I output characteristic and allows parallel operation to enable redundancy. A further feature is the signalling output (transistor) for output voltage OK. A redundancy unit is available as accessory.
