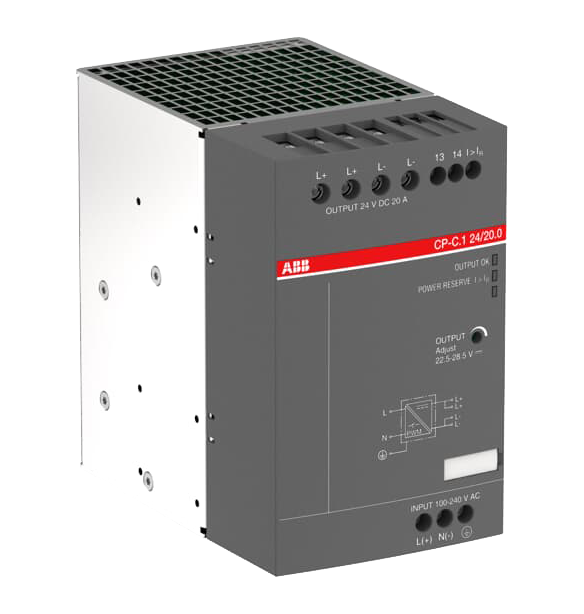

ABB CP-C.1 24/20.0 Power supply In:100-240VAC/90-300VDC Out:DC 24V/20A

General Information

• Extended Product Type:

  CP-C.1 24/20.0


• Product ID:

  1SVR360763R1001


• EAN:

  4013614503832


• Catalog Description:

  CP-C.1 24/20.0 Power supply In:100-240VAC/90-300VDC Out:DC 24V/20A


• Long Description:

  The CP-C.1 24/20.0 is a power supply from the CP-C.1 range. The primary switch mode power supply offers a wide range input of 85-264 V AC and 90-300 V DC, rated input voltage is 110-240 V AC. The rated output power is 480 W, rated output current is 20 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 22.5 to 28.5 V DC. The power supply provides a U/I output characteristic with a power reserve of up to 30 % and allows parallel operation to increase capacity and to enable redundancy. Further features are: power factor correction acc. to EN 61000-3-2. Redundancy unit and buffer modules are available as accessories
