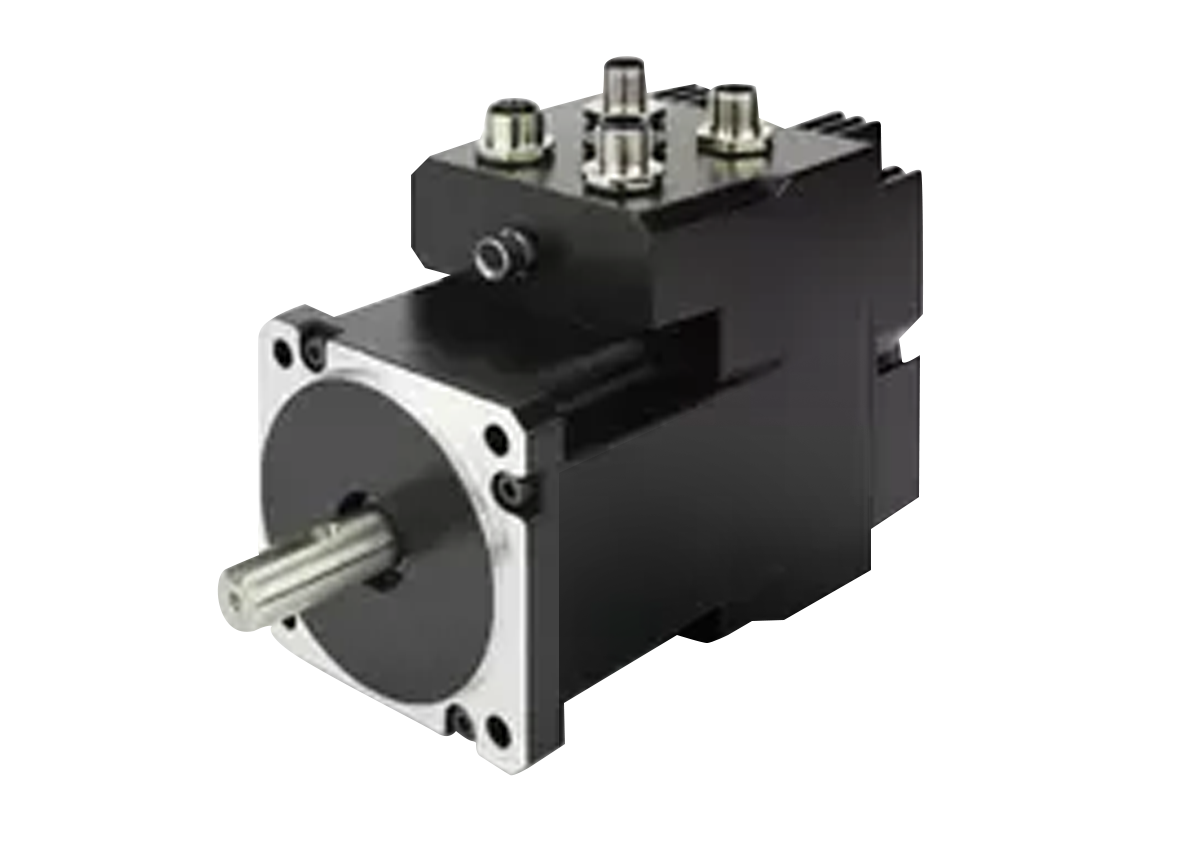

Nanotec PD6-EB BLDC Motor with Controller
Nanotec PD6-EB BLDC Motor with Controller
Regular price
£970.00 GBP
Regular price
Sale price
£970.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Item Attributes
| Item type | NANOTEC STEPPER MOTOR WITH CONTROLLER |
| Motor Size |
80mm |
General Information
Size : 80 mm
Rated Torque (options) : 90 Ncm - 300 Ncm
Operating Voltage : 12 VDC - 48 VDC
Encoder Type : Single-turn absolute
Interface (options) : USB
Fieldbus (options): CANopen, EtherCAT, EtherNet/IP, Modbus TCP, Modbus RTU, Profinet
Want to order this motor? - please contact us.
Smart stepper motor with integrated controller and encoder. Space-saving all-in-one servo system that simplifies installation. Flange size: 42 mm. Ideal for direct control via a PLC Program.
- Controlled by fieldbus, clock & direction or analog/digital inputs
- Easy to parameterize via CANopen or USB
- Simple programming with the Plug & Drive Studio
- Closed loop with singleturn absolute encoder
- High precision and smooth running
- Motors with USB interface are particularly suited for control via IO (clock & direction, analog)
Automation.co.uk are an official trade partner for Nanotec and can provide all of Nanotec's ranges to you from our UK based business, if you don't see it please ask us to make it available to you.
Ordering motors with configurable options?
Want to order this motor? - please contact us for assistance with product configuration.
PD6-EB80CD-E-65-1PD6-EB80CD-E-65-1 : (EtherCAT, 300 Ncm Rated Torque, 940 W)
PD6-EB80CD-E-65-2PD6-EB80CD-E-65-2 : (CANopen, 300 Ncm Rated Torque, 940 W)
PD6-EB80CD-E-65-3PD6-EB80CD-E-65-3 : (EtherNet/IP, 300 Ncm Rated Torque, 940 W)
PD6-EB80CD-E-65-4PD6-EB80CD-E-65-4 : (Modbus TCP, 300 Ncm Rated Torque, 940 W)
PD6-EB80CD-E-65-5PD6-EB80CD-E-65-5 : (Modbus RTU, 300 Ncm Rated Torque, 940 W)
PD6-EB80CD-E-65-10PD6-EB80CD-E-65-10 : (Profinet, 300 Ncm Rated Torque, 940 W)
PD6-EB80CD-M-65-2PD6-EB80CD-M-65-2 : (CANopen, 300 Ncm Rated Torque, 940 W)
PD6-EB80LD-E-65-2PD6-EB80LD-E-65-2 : (CANopen, 225 Ncm Rated Torque, 706 W)
PD6-EB80MD-E-65-1PD6-EB80MD-E-65-1 : (EtherCAT, 170 Ncm Rated Torque, 534 W)
PD6-EB80MD-E-65-2PD6-EB80MD-E-65-2 : (CANopen, 170 Ncm Rated Torque, 534 W)
PD6-EB80MD-E-65-3PD6-EB80MD-E-65-3 : (EtherNet/IP, 170 Ncm Rated Torque, 534 W)
PD6-EB80MD-E-65-4PD6-EB80MD-E-65-4 : (Modbus TCP, 170 Ncm Rated Torque, 534 W)
PD6-EB80MD-E-65-10PD6-EB80MD-E-65-10 : (Profinet, 170 Ncm Rated Torque, 534 W)
PD6-EB80SD-E-65-2PD6-EB80SD-E-65-2 : (CANopen, 90 Ncm Rated Torque, 283 W)
PD6-EB80SD-E-65-1PD6-EB80SD-E-65-1 : (EtherCAT, 90 Ncm Rated Torque, 283 W)
PD6-EB80SD-E-65-3PD6-EB80SD-E-65-3 : (EtherNet/IP, 90 Ncm Rated Torque, 283 W)
PD6-EB80SD-E-65-4PD6-EB80SD-E-65-4 : (Modbus TCP, 90 Ncm Rated Torque, 283 W)
PD6-EB80SD-E-65-5PD6-EB80SD-E-65-5 : (Modbus RTU, 90 Ncm Rated Torque, 283 W)
PD6-EB80SD-E-65-10PD6-EB80SD-E-65-10 : (Profinet, 90 Ncm Rated Torque, 283 W)
PD6-EB80SD-M-65-1PD6-EB80SD-M-65-1 : (EtherCAT, 90 Ncm Rated Torque, 283 W)
PD6-EB80SD-M-65-2PD6-EB80SD-M-65-2 : (CANopen, 90 Ncm Rated Torque, 283 W)
PD6-EB80SD-M-65-3PD6-EB80SD-M-65-3 : (EtherNet/IP, 90 Ncm Rated Torque, 283 W)
PD6-EB80SD-M-65-4PD6-EB80SD-M-65-4 : (Modbus TCP, 90 Ncm Rated Torque, 283 W)
PD6-EB80SD-M-65-10PD6-EB80SD-M-65-10 : (Profinet, 90 Ncm Rated Torque, 283 W)
PD6-EB80MD-E-65-5PD6-EB80MD-E-65-5 : (Modbus RTU, 170 Ncm Rated Torque, 534 W)
PD6-EB80MD-M-65-1PD6-EB80MD-M-65-1 : (EtherCAT, 170 Ncm Rated Torque, 534 W)
PD6-EB80MD-M-65-2PD6-EB80MD-M-65-2 : (CANopen, 170 Ncm Rated Torque, 534 W)
PD6-EB80MD-M-65-3PD6-EB80MD-M-65-3 : (EtherNet/IP, 170 Ncm Rated Torque, 534 W)
PD6-EB80MD-M-65-4PD6-EB80MD-M-65-4 : (Modbus TCP, 170 Ncm Rated Torque, 534 W)
PD6-EB80MD-M-65-10PD6-EB80MD-M-65-10 : (Profinet, 170 Ncm Rated Torque, 534 W)
PD6-EB80LD-E-65-1PD6-EB80LD-E-65-1 : (EtherCAT, 225 Ncm Rated Torque, 706 W)
PD6-EB80LD-E-65-3PD6-EB80LD-E-65-3 : (EtherNet/IP, 225 Ncm Rated Torque, 706 W)
PD6-EB80LD-E-65-4PD6-EB80LD-E-65-4 : (Modbus TCP, 225 Ncm Rated Torque, 706 W)
PD6-EB80LD-E-65-5PD6-EB80LD-E-65-5 : (Modbus RTU, 225 Ncm Rated Torque, 706 W)
PD6-EB80LD-E-65-10PD6-EB80LD-E-65-10 : (Profinet, 225 Ncm Rated Torque, 706 W)
PD6-EB80LD-M-65-1PD6-EB80LD-M-65-1 : (EtherCAT, 225 Ncm Rated Torque, 706 W)
PD6-EB80LD-M-65-2PD6-EB80LD-M-65-2 : (CANopen, 225 Ncm Rated Torque, 706 W)
PD6-EB80LD-M-65-3PD6-EB80LD-M-65-3 : (EtherNet/IP, 225 Ncm Rated Torque, 706 W)
PD6-EB80LD-M-65-4PD6-EB80LD-M-65-4 : (Modbus TCP, 225 Ncm Rated Torque, 706 W)
PD6-EB80LD-M-65-10PD6-EB80LD-M-65-10 : (Profinet, 225 Ncm Rated Torque, 706 W)
PD6-EB80CD-M-65-1PD6-EB80CD-M-65-1 : (EtherCAT, 300 Ncm Rated Torque, 940 W)
PD6-EB80CD-M-65-3PD6-EB80CD-M-65-3 : (EtherNet/IP, 300 Ncm Rated Torque, 940 W)
PD6-EB80CD-M-65-4PD6-EB80CD-M-65-4 : (Modbus TCP, 300 Ncm Rated Torque, 940 W)
PD6-EB80CD-M-65-10PD6-EB80CD-M-65-10 : (Profinet, 300 Ncm Rated Torque, 940 W)
PD6-EB80CD-E-65-2PD6-EB80CD-E-65-2 : (CANopen, 300 Ncm Rated Torque, 940 W)
PD6-EB80CD-E-65-3PD6-EB80CD-E-65-3 : (EtherNet/IP, 300 Ncm Rated Torque, 940 W)
PD6-EB80CD-E-65-4PD6-EB80CD-E-65-4 : (Modbus TCP, 300 Ncm Rated Torque, 940 W)
PD6-EB80CD-E-65-5PD6-EB80CD-E-65-5 : (Modbus RTU, 300 Ncm Rated Torque, 940 W)
PD6-EB80CD-E-65-10PD6-EB80CD-E-65-10 : (Profinet, 300 Ncm Rated Torque, 940 W)
PD6-EB80CD-M-65-2PD6-EB80CD-M-65-2 : (CANopen, 300 Ncm Rated Torque, 940 W)
PD6-EB80LD-E-65-2PD6-EB80LD-E-65-2 : (CANopen, 225 Ncm Rated Torque, 706 W)
PD6-EB80MD-E-65-1PD6-EB80MD-E-65-1 : (EtherCAT, 170 Ncm Rated Torque, 534 W)
PD6-EB80MD-E-65-2PD6-EB80MD-E-65-2 : (CANopen, 170 Ncm Rated Torque, 534 W)
PD6-EB80MD-E-65-3PD6-EB80MD-E-65-3 : (EtherNet/IP, 170 Ncm Rated Torque, 534 W)
PD6-EB80MD-E-65-4PD6-EB80MD-E-65-4 : (Modbus TCP, 170 Ncm Rated Torque, 534 W)
PD6-EB80MD-E-65-10PD6-EB80MD-E-65-10 : (Profinet, 170 Ncm Rated Torque, 534 W)
PD6-EB80SD-E-65-2PD6-EB80SD-E-65-2 : (CANopen, 90 Ncm Rated Torque, 283 W)
PD6-EB80SD-E-65-1PD6-EB80SD-E-65-1 : (EtherCAT, 90 Ncm Rated Torque, 283 W)
PD6-EB80SD-E-65-3PD6-EB80SD-E-65-3 : (EtherNet/IP, 90 Ncm Rated Torque, 283 W)
PD6-EB80SD-E-65-4PD6-EB80SD-E-65-4 : (Modbus TCP, 90 Ncm Rated Torque, 283 W)
PD6-EB80SD-E-65-5PD6-EB80SD-E-65-5 : (Modbus RTU, 90 Ncm Rated Torque, 283 W)
PD6-EB80SD-E-65-10PD6-EB80SD-E-65-10 : (Profinet, 90 Ncm Rated Torque, 283 W)
PD6-EB80SD-M-65-1PD6-EB80SD-M-65-1 : (EtherCAT, 90 Ncm Rated Torque, 283 W)
PD6-EB80SD-M-65-2PD6-EB80SD-M-65-2 : (CANopen, 90 Ncm Rated Torque, 283 W)
PD6-EB80SD-M-65-3PD6-EB80SD-M-65-3 : (EtherNet/IP, 90 Ncm Rated Torque, 283 W)
PD6-EB80SD-M-65-4PD6-EB80SD-M-65-4 : (Modbus TCP, 90 Ncm Rated Torque, 283 W)
PD6-EB80SD-M-65-10PD6-EB80SD-M-65-10 : (Profinet, 90 Ncm Rated Torque, 283 W)
PD6-EB80MD-E-65-5PD6-EB80MD-E-65-5 : (Modbus RTU, 170 Ncm Rated Torque, 534 W)
PD6-EB80MD-M-65-1PD6-EB80MD-M-65-1 : (EtherCAT, 170 Ncm Rated Torque, 534 W)
PD6-EB80MD-M-65-2PD6-EB80MD-M-65-2 : (CANopen, 170 Ncm Rated Torque, 534 W)
PD6-EB80MD-M-65-3PD6-EB80MD-M-65-3 : (EtherNet/IP, 170 Ncm Rated Torque, 534 W)
PD6-EB80MD-M-65-4PD6-EB80MD-M-65-4 : (Modbus TCP, 170 Ncm Rated Torque, 534 W)
PD6-EB80MD-M-65-10PD6-EB80MD-M-65-10 : (Profinet, 170 Ncm Rated Torque, 534 W)
PD6-EB80LD-E-65-1PD6-EB80LD-E-65-1 : (EtherCAT, 225 Ncm Rated Torque, 706 W)
PD6-EB80LD-E-65-3PD6-EB80LD-E-65-3 : (EtherNet/IP, 225 Ncm Rated Torque, 706 W)
PD6-EB80LD-E-65-4PD6-EB80LD-E-65-4 : (Modbus TCP, 225 Ncm Rated Torque, 706 W)
PD6-EB80LD-E-65-5PD6-EB80LD-E-65-5 : (Modbus RTU, 225 Ncm Rated Torque, 706 W)
PD6-EB80LD-E-65-10PD6-EB80LD-E-65-10 : (Profinet, 225 Ncm Rated Torque, 706 W)
PD6-EB80LD-M-65-1PD6-EB80LD-M-65-1 : (EtherCAT, 225 Ncm Rated Torque, 706 W)
PD6-EB80LD-M-65-2PD6-EB80LD-M-65-2 : (CANopen, 225 Ncm Rated Torque, 706 W)
PD6-EB80LD-M-65-3PD6-EB80LD-M-65-3 : (EtherNet/IP, 225 Ncm Rated Torque, 706 W)
PD6-EB80LD-M-65-4PD6-EB80LD-M-65-4 : (Modbus TCP, 225 Ncm Rated Torque, 706 W)
PD6-EB80LD-M-65-10PD6-EB80LD-M-65-10 : (Profinet, 225 Ncm Rated Torque, 706 W)
PD6-EB80CD-M-65-1PD6-EB80CD-M-65-1 : (EtherCAT, 300 Ncm Rated Torque, 940 W)
PD6-EB80CD-M-65-3PD6-EB80CD-M-65-3 : (EtherNet/IP, 300 Ncm Rated Torque, 940 W)
PD6-EB80CD-M-65-4PD6-EB80CD-M-65-4 : (Modbus TCP, 300 Ncm Rated Torque, 940 W)
PD6-EB80CD-M-65-10PD6-EB80CD-M-65-10 : (Profinet, 300 Ncm Rated Torque, 940 W)
The ideal motors for a lean, PLC driven, system
Nanotec motors with integrated controllers are an ideal choice for PLC automation users. They combine a motor, controller, and encoder into one compact unit, reducing wiring complexity and saving valuable space in control panels. With support for common industrial communication protocols like CANopen, EtherCAT, and Modbus (check model and range for options), they integrate seamlessly with PLCs. Their precise motion control capabilities and built-in features, such as current and position monitoring, enhance system reliability while simplifying setup and maintenance. These motors are perfect for streamlining automation projects without sacrificing performance.
We offer Nanotec integrated stepper motors in four sizes and with a holding torque of up to 9.3 Nm. Due to their high torque at low speeds, closed-loop stepper motors are especially well-suited for direct drives.
- Precise position, speed and torque control
- Magnetic single-turn absolute encoder or battery-free multi-turn absolute encoder (PD4 E... M)
- Digital and analog inputs, digital outputs
- Integrated temperature monitoring to prevent overload
- Smooth running, no resonances
