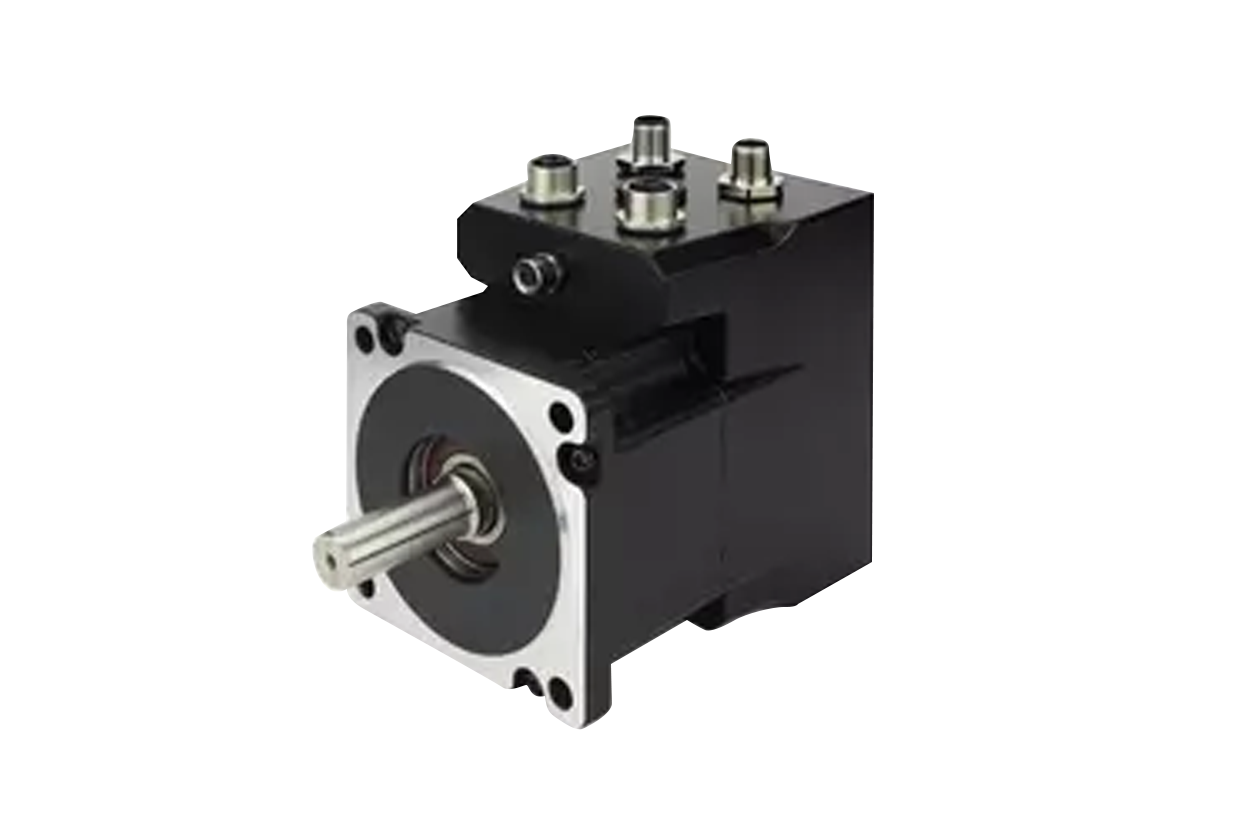

Nanotec PD6-E Stepper with Controller
Nanotec PD6-E Stepper with Controller
Couldn't load pickup availability
Item type | NANOTEC STEPPER MOTOR WITH CONTROLLER |
Motor Size |
NEMA 34 / 86 mm |
General Information
Size : NEMA 34 / 86 mm
Holding Torque (options) : 320 Ncm - 933 Ncm
Operating Voltage : 12 VDC - 48 VDC
Encoder Type : Single-turn absolute
Interface (options) : USB
Fieldbus (options): CANopen, EtherCAT, EtherNet/IP, Modbus TCP, Modbus RTU, Profinet
Smart stepper motor with integrated controller and encoder. Space-saving all-in-one servo system that simplifies installation. Flange size: 42 mm. Ideal for direct control via a PLC Program.
- Controlled by fieldbus, clock & direction or analog/digital inputs
- Easy to parameterize via CANopen or USB
- Simple programming with the Plug & Drive Studio
- Closed loop with singleturn absolute encoder
- High precision and smooth running
- Motors with USB interface are particularly suited for control via IO (clock & direction, analog)
Automation.co.uk are an official trade partner for Nanotec and can provide all of Nanotec's ranges to you from our UK based business, if you don't see it please ask us to make it available to you.
Ordering motors with configurable options?
PD6-E891L95-E-65-2 : (CANopen, USB, single-turn absolute, 933 Ncm holding torque)
PD6-E891L95-E-65-3 : (EtherNet/IP, USB, single-turn absolute, 933 Ncm holding torque)
PD6-E891L95-E-65-4 : (Modbus TCP, USB, single-turn absolute, 933 Ncm holding torque)
PD6-E891L95-E-65-5 : (Modbus RTU, USB, single-turn absolute, 933 Ncm holding torque)
PD6-E891L95-E-65-10 : (Profinet, USB, single-turn absolute, 933 Ncm holding torque)
PD6-E891M95-E-65-1 : (EtherCAT, USB, single-turn absolute, 594 Ncm holding torque)
PD6-E891M95-E-65-2 : (CANopen, USB, single-turn absolute, 594 Ncm holding torque)
PD6-E891M95-E-65-3 : (EtherNet/IP, USB, single-turn absolute, 594 Ncm holding torque)
PD6-E891M95-E-65-4 : (Modbus TCP, USB, single-turn absolute, 594 Ncm holding torque)
PD6-E891M95-E-65-10 : (Profinet, USB, single-turn absolute, 594 Ncm holding torque)
PD6-E891S95-E-65-2 : (CANopen, USB, single-turn absolute, 320 Ncm holding torque)
PD6-E891S95-E-65-1 : (EtherCAT, USB, single-turn absolute, 320 Ncm holding torque)
PD6-E891S95-E-65-3 : (EtherNet/IP, USB, single-turn absolute, 320 Ncm holding torque)
PD6-E891S95-E-65-4 : (Modbus TCP, USB, single-turn absolute, 320 Ncm holding torque)
PD6-E891S95-E-65-5 : (Modbus RTU, USB, single-turn absolute, 320 Ncm holding torque)
PD6-E891S95-E-65-10 : (Profinet, USB, single-turn absolute, 320 Ncm holding torque)
PD6-E891S95-M-65-1 : (EtherCAT, USB, multi-turn absolute, 320 Ncm holding torque)
PD6-E891S95-M-65-2 : (CANopen, USB, multi-turn absolute, 320 Ncm holding torque)
PD6-E891S95-M-65-3 : (EtherNet/IP, USB, multi-turn absolute, 320 Ncm holding torque)
PD6-E891S95-M-65-4 : (Modbus TCP, USB, multi-turn absolute, 320 Ncm holding torque)
PD6-E891S95-M-65-10 : (Profinet, USB, multi-turn absolute, 320 Ncm holding torque)
PD6-E891M95-E-65-5 : (Modbus RTU, USB, single-turn absolute, 594 Ncm holding torque)
PD6-E891M95-M-65-1 : (EtherCAT, USB, multi-turn absolute, 594 Ncm holding torque)
PD6-E891M95-M-65-2 : (CANopen, USB, multi-turn absolute, 594 Ncm holding torque)
PD6-E891M95-M-65-3 : (EtherNet/IP, USB, multi-turn absolute, 594 Ncm holding torque)
PD6-E891M95-M-65-4 : (Modbus TCP, USB, multi-turn absolute, 594 Ncm holding torque)
PD6-E891M95-M-65-10 : (Profinet, USB, multi-turn absolute, 594 Ncm holding torque)
PD6-E891L95-M-65-1 : (EtherCAT, USB, multi-turn absolute, 933 Ncm holding torque)
PD6-E891L95-M-65-2 : (CANopen, USB, multi-turn absolute, 933 Ncm holding torque)
PD6-E891L95-M-65-3 : (EtherNet/IP, USB, multi-turn absolute, 933 Ncm holding torque)
PD6-E891L95-M-65-4 : (Modbus TCP, USB, multi-turn absolute, 933 Ncm holding torque)
PD6-E891L95-M-65-10 : (Profinet, USB, multi-turn absolute, 933 Ncm holding torque)
The ideal motors for a lean, PLC driven, system
![](https://cdn.shopify.com/s/files/1/0814/3473/9037/files/nanotecbldcwcHeader-tns_480x480.png?v=1734012694)
- Precise position, speed and torque control
- Magnetic single-turn absolute encoder or battery-free multi-turn absolute encoder (PD4 E... M)
- Digital and analog inputs, digital outputs
- Integrated temperature monitoring to prevent overload
- Smooth running, no resonances
Stepper Controllers
We also supply Nanotec programmable motor controllers for stepper motors in many different versions and with a wide power range. Click here to shop Stepper Controllers.
