Nanotec PD1-C Stepper with Controller
Nanotec PD1-C Stepper with Controller
Regular price
£348.00 GBP
Regular price
Sale price
£348.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Item Attributes
| Item type | NANOTEC STEPPER MOTOR WITH CONTROLLER |
| Motor Size |
NEMA 11 |
General Information
Size : 28 mm / NEMA 11
Holding Torque (options) : 9 Ncm / 18 Ncm
Operating Voltage : 12 VDC - 30 VDC
Encoder Type : Single-turn absolute
Interface (options) : -
Fieldbus (options): CANopen, Modbus RTU
Holding Torque (options) : 9 Ncm / 18 Ncm
Operating Voltage : 12 VDC - 30 VDC
Encoder Type : Single-turn absolute
Interface (options) : -
Fieldbus (options): CANopen, Modbus RTU
Want to order this motor? - please contact us.

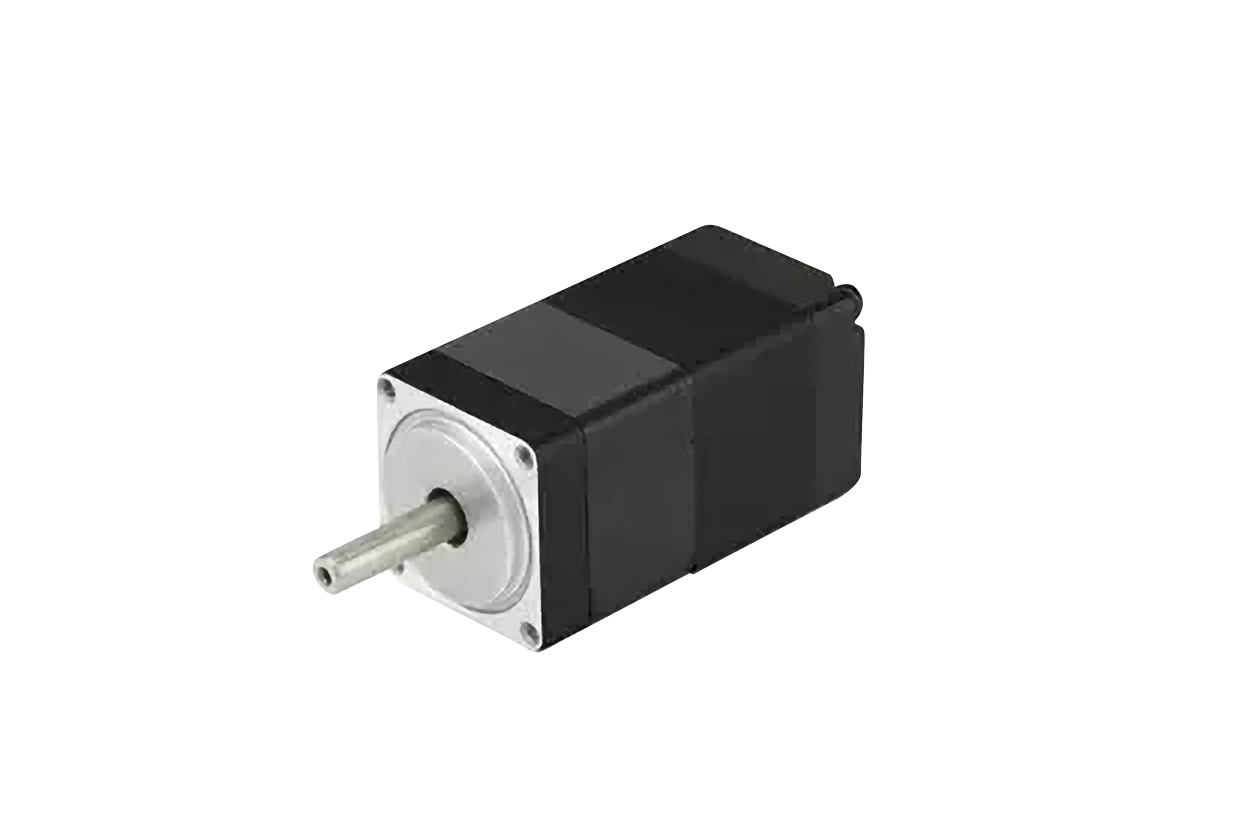

The PD1-C stepper motor is the smallest Nanotec smart servo. Available with a fieldbus option, IP20/IP65 build option, different lengths and holding torque. Ideal for direct control via a PLC Program.
- Controlled by fieldbus, clock & direction or analog/digital inputs
- Easy to parameterise via CANopen or Modbus RTU
- Simple programming with Plug & Drive Studio
- Closed loop with single turn absolute encoder
- Precise and smooth operation
Automation.co.uk are an official trade partner for Nanotec and can provide all of Nanotec's ranges to you from our UK based business, if you don't see it please ask us to make it available to you.
Ordering motors with configurable options?
Want to order this motor? - please contact us for assistance with product configuration.
PD1-C281S15-E-20-2 : (IP20, CANopen, 9 Ncm holding torque)
PD1-C281S15-E-20-5 : (IP20, Modbus RTU, 9 Ncm holding torque)
PD1-C281L15-E-20-2 : (IP20, CANopen, 18 Ncm holding torque)
PD1-C281L15-E-20-5 : (IP20, Modbus RTU, 18 Ncm holding torque)
PD1-C281S15-E-20-5 : (IP20, Modbus RTU, 9 Ncm holding torque)
PD1-C281L15-E-20-2 : (IP20, CANopen, 18 Ncm holding torque)
PD1-C281L15-E-20-5 : (IP20, Modbus RTU, 18 Ncm holding torque)
PD1-C281S15-E-65-2 : (IP65, CANopen, 9 Ncm holding torque)
PD1-C281S15-E-65-5 : (IP65, Modbus RTU, 9 Ncm holding torque)
PD1-C281L15-E-65-2 : (IP65, CANopen, 18 Ncm holding torque)
PD1-C281L15-E-65-5 : (IP65, Modbus RTU, 18 Ncm holding torque)
PD1-C281S15-E-65-5 : (IP65, Modbus RTU, 9 Ncm holding torque)
PD1-C281L15-E-65-2 : (IP65, CANopen, 18 Ncm holding torque)
PD1-C281L15-E-65-5 : (IP65, Modbus RTU, 18 Ncm holding torque)
The ideal motors for a lean, PLC driven, system
Nanotec motors with integrated controllers are an ideal choice for PLC automation users. They combine a motor, controller, and encoder into one compact unit, reducing wiring complexity and saving valuable space in control panels. With support for common industrial communication protocols like CANopen, EtherCAT, and Modbus (check model and range for options), they integrate seamlessly with PLCs. Their precise motion control capabilities and built-in features, such as current and position monitoring, enhance system reliability while simplifying setup and maintenance. These motors are perfect for streamlining automation projects without sacrificing performance.
We offer Nanotec integrated stepper motors in four sizes and with a holding torque of up to 9.3 Nm. Due to their high torque at low speeds, closed-loop stepper motors are especially well-suited for direct drives.
- Precise position, speed and torque control
- Magnetic single-turn absolute encoder or battery-free multi-turn absolute encoder (PD4 E... M)
- Digital and analog inputs, digital outputs
- Integrated temperature monitoring to prevent overload
- Smooth running, no resonances
Stepper Controllers
We also supply Nanotec programmable motor controllers for stepper motors in many different versions and with a wide power range. Click here to shop Stepper Controllers.
