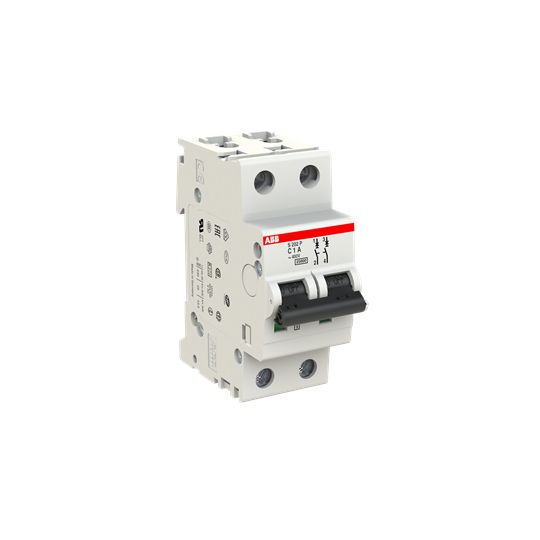

ABB S202P-C1 Miniature Circuit Breaker - 2P - C - 1 A

General Information

• Extended Product Type:

  S202P-C1


• Product ID:

  2CDS282001R0014


• EAN:

  4016779590358


• Catalog Description:

  S202P-C1 Miniature Circuit Breaker - 2P - C - 1 A


• Long Description:

  System pro M compact S200P miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 25 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200P comply with IEC/EN 60898-1, IEC/EN 609 47-2, UL1077 and CSA 22.2 No. 235, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200P to save 50% space.
