ABB Ltd

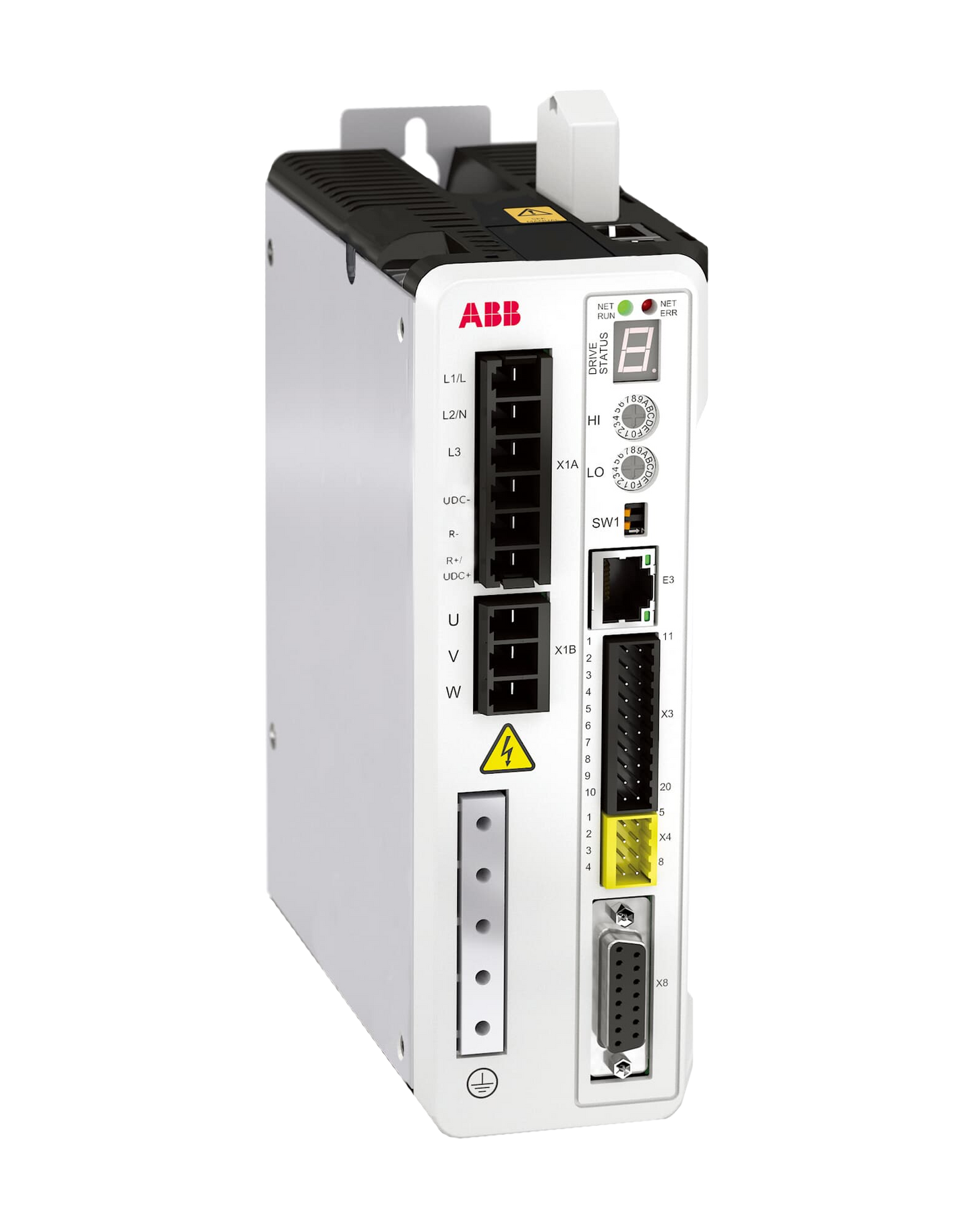

ABB MFE190-04UD-09A0-2 e190 - Flexible Ethernet AC Motion Servo Drive with Programing Option
ABB MFE190-04UD-09A0-2 e190 - Flexible Ethernet AC Motion Servo Drive with Programing Option
Regular price
£1,107.60 GBP
Regular price
Sale price
£1,107.60 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Item Attributes
| Item type | ABB MOTION DRIVES |
General Information
Global Commercial Alias:
MFE190-04UD-09A0-2
Product ID:
3AXD50000637416
ABB Type Designation:
MFE190-04UD-09A0-2
Catalog Description:
e190 servo drive, 1P/3P, 220 VAC, IN: 9 A
Long Description:
MicroFlex e190 is a compact servo drive with flexible Ethernet communication protocol options. It can operate with one of the selectable built-in Ethernet protocols. A free Mint programming license is provided for the drive to realize easy positioning tasks. The drive supports various feedback types, allowing for flexible motor pairing options.
Technical
Technical
Number of Phases:
1
3
Degree of Protection:
IP20
Frequency (f):
40 ... 72 Hz
Frame Size:
A
Input Voltage (Uin):
200 ... 240 V
Output Current, Normal Use (In):
9 A
Apparent Power Output:
3.7 kV·A
Efficiency Level:
IE2
Standby Loss:
16 W
Complete Drive Module Efficiency (61800-9-2):
| Operating Point Frequency / Current |
Absolute Loss |
Relative Loss |
Efficiency |
|---|---|---|---|
|
0 / 25 %
|
47 W
|
1.3 %
|
80.7 %
|
|
0 / 50 %
|
54 W
|
1.4 %
|
87.7 %
|
|
0 / 100 %
|
70 W
|
1.9 %
|
91.0 %
|
|
50 / 25 %
|
49 W
|
1.3 %
|
89.4 %
|
|
50 / 50 %
|
56 W
|
1.5 %
|
93.4 %
|
|
50 / 100 %
|
75 W
|
2.0 %
|
95.2 %
|
|
90 / 50 %
|
60 W
|
1.6 %
|
96.0 %
|
|
90 / 100 %
|
81 W
|
2.2 %
|
97.1 %
|
Temperature Rating: Maximum 55 °C
