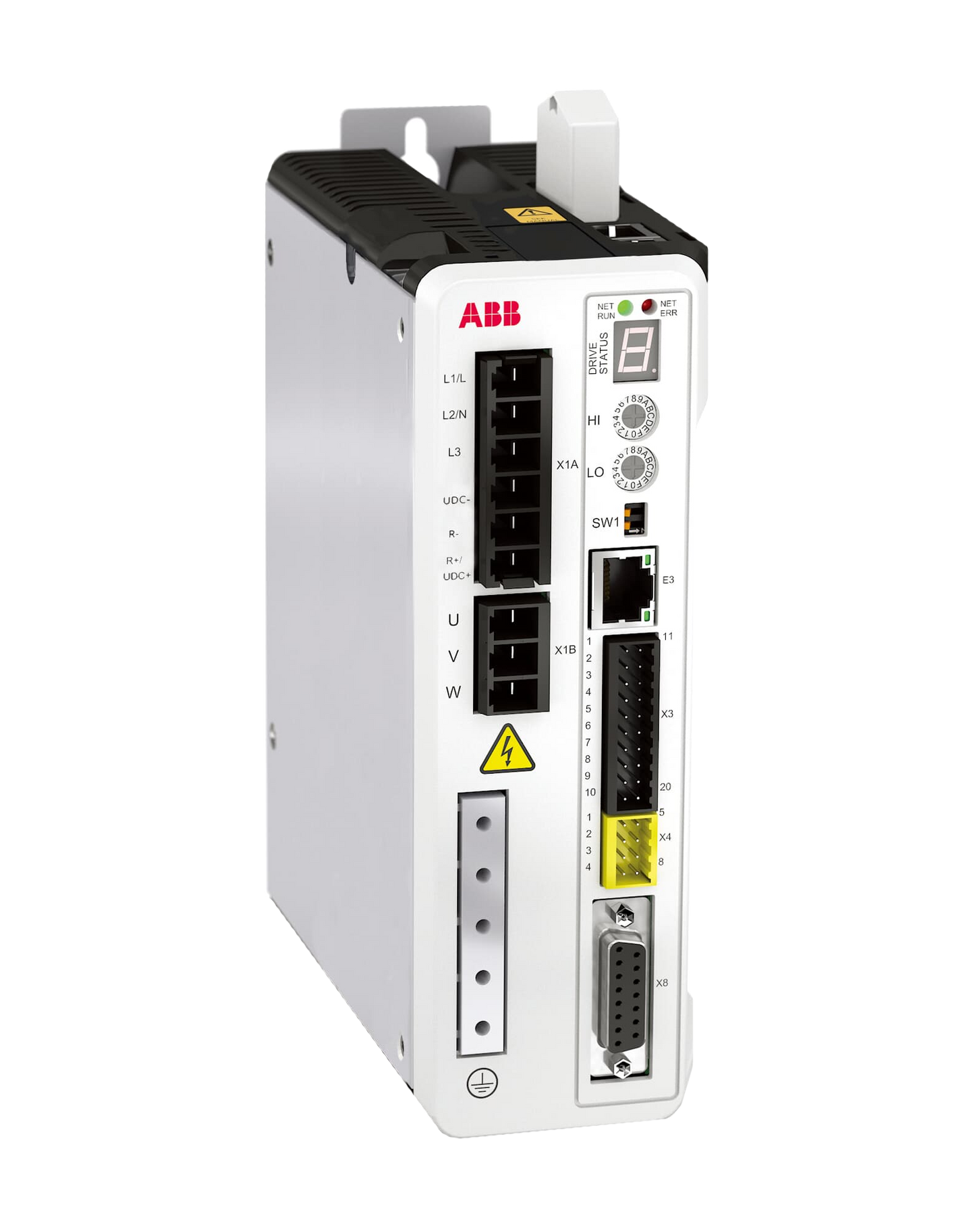

ABB MFE190-04UD-06A0-2 e190 - Flexible Ethernet AC Motion Servo Drive with Programing Option
ABB MFE190-04UD-06A0-2 e190 - Flexible Ethernet AC Motion Servo Drive with Programing Option
Regular price
£954.00 GBP
Regular price
Sale price
£954.00 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Item Attributes
| Item type | ABB MOTION DRIVES |
General Information
Global Commercial Alias:
MFE190-04UD-06A0-2
Product ID:
3AXD50000637102
ABB Type Designation:
MFE190-04UD-06A0-2
Catalog Description:
e190 servo drive, 1P/3P, 220 VAC, IN: 6 A
Long Description:
MicroFlex e190 is a compact servo drive with flexible Ethernet communication protocol options. It can operate with one of the selectable built-in Ethernet protocols. A free Mint programming license is provided for the drive to realize easy positioning tasks. The drive supports various feedback types, allowing for flexible motor pairing options.
Technical
Number of Phases:
1
3
Degree of Protection:
IP20
Frequency (f):
40 ... 72 Hz
Frame Size:
A
Input Voltage (Uin):
200 ... 240 V
Output Current, Normal Use (In):
6 A
Apparent Power Output:
2.5 kV·A
Efficiency Level:
IE2
Standby Loss:
16 W
1
3
Degree of Protection:
IP20
Frequency (f):
40 ... 72 Hz
Frame Size:
A
Input Voltage (Uin):
200 ... 240 V
Output Current, Normal Use (In):
6 A
Apparent Power Output:
2.5 kV·A
Efficiency Level:
IE2
Standby Loss:
16 W
Complete Drive Module Efficiency (61800-9-2):
| Operating Point Frequency / Current |
Absolute Loss |
Relative Loss |
Efficiency |
|---|---|---|---|
|
0 / 25 %
|
37 W
|
1.5 %
|
78.3 %
|
|
0 / 50 %
|
41 W
|
1.6 %
|
86.2 %
|
|
0 / 100 %
|
52 W
|
2.1 %
|
90.2 %
|
|
50 / 25 %
|
37 W
|
1.5 %
|
88.0 %
|
|
50 / 50 %
|
42 W
|
1.7 %
|
92.6 %
|
|
50 / 100 %
|
54 W
|
2.2 %
|
94.8 %
|
|
90 / 50 %
|
45 W
|
1.8 %
|
95.6 %
|
|
90 / 100 %
|
58 W
|
2.3 %
|
96.8 %
|
Temperature Rating: Maximum 55 °C
