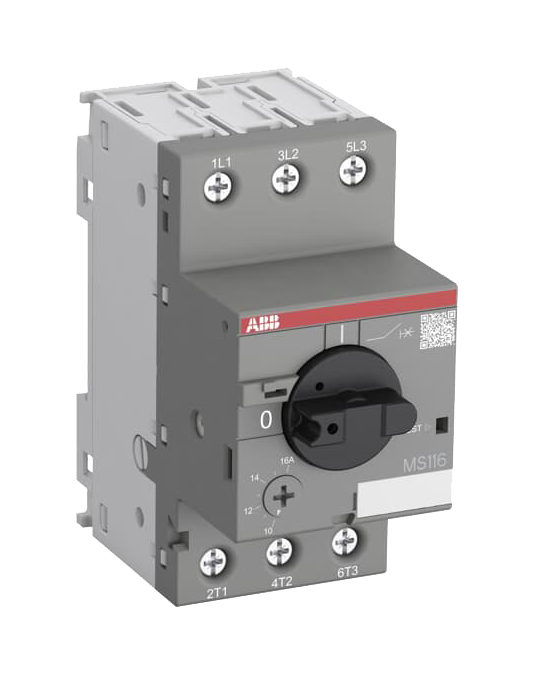

ABB MS116-12 Manual Motor Starter 8.0 ... 12 A

General Information

• Extended Product Type:

  MS116-12


• Product ID:

  1SAM250000R1012


• EAN:

  4013614348211


• Catalog Description:

  MS116-12 Manual Motor Starter 8.0 ... 12 A


• Long Description:

  The MS116-12 manual motor starter (also known as motor protection circuit breaker or manual motor protector) is a compact 45 mm width device with a rated operational current of Ie = 12.0 A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 25 kA at 400 VAC and trip class 10A. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single-phase applications. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks and locking devices for protection against unauthorized changes are available as accessory.
