ABB RB121P-5VDC Interface relay R600 1c/o,A1-A2=5VDC,5-250VAC/60mA-6A

General Information

• Extended Product Type:

  RB121P-5VDC


• Product ID:

  1SNA645034R2300


• EAN:

  4013614507977


• Catalog Description:

  RB121P-5VDC Interface relay R600 1c/o,A1-A2=5VDC,5-250VAC/60mA-6A


• Long Description:

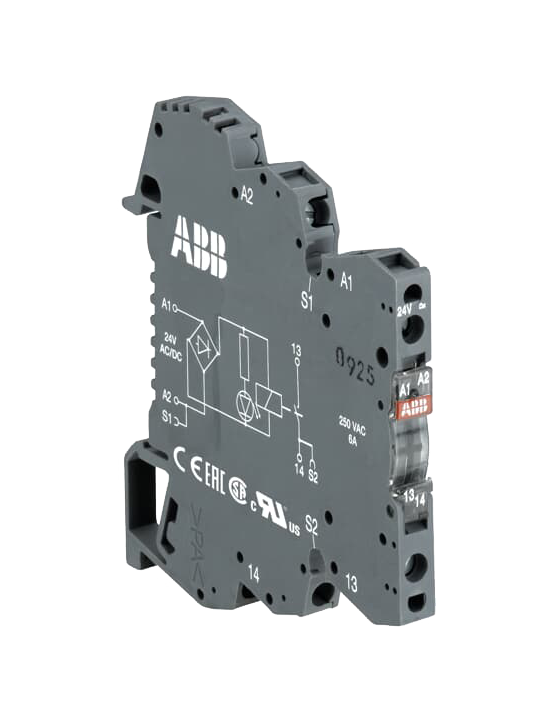

  The RB121P-5VDC is a boxed interface relay with screw terminals, which can be seemlessly snap-on mounted onto a DIN Rail. The relay is soldered into device housing, ensuring a high resistance against vibration.This relay operates with a 5 V DC rated control supply voltage and has a 1 c/o (SPDT) output with contacts rated at 250 V / 6 A. This 6mm wide boxed interface relay may be used for electrical isolation, amplification and signal matching and enables the switching of high currents on a small footprint. It has an integrated LED, which provides the visual indication of the energization of the relay coil and UL 94-V0 certified device housing, improving safety by providing high levels flame retardation. Jumper bars are available as accessories.
