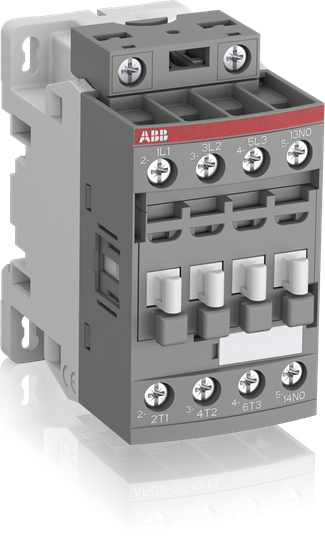

ABB AF16-30-10-11 24-60V50/60HZ 20-60VDC Contactor

General Information

• Extended Product Type:

  AF16-30-10-11


• Product ID:

  1SBL177001R1110


• EAN:

  3471523110618


• Catalog Description:

  AF16-30-10-11 24-60V50/60HZ 20-60VDC Contactor


• Long Description:

  The AF16-30-10-11 is a 3 pole - 690 V IEC or 600 UL contactor with 1 built-in auxiliary contact and screw terminals, controlling motors up to 7.5 kW / 400 V AC (AC-3) or 10 hp / 480 V UL and switching power circuits up to 30 A (AC-1) or 30 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (24-60 V 50/60 Hz and 20-60 V DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
