ABB Low Voltage

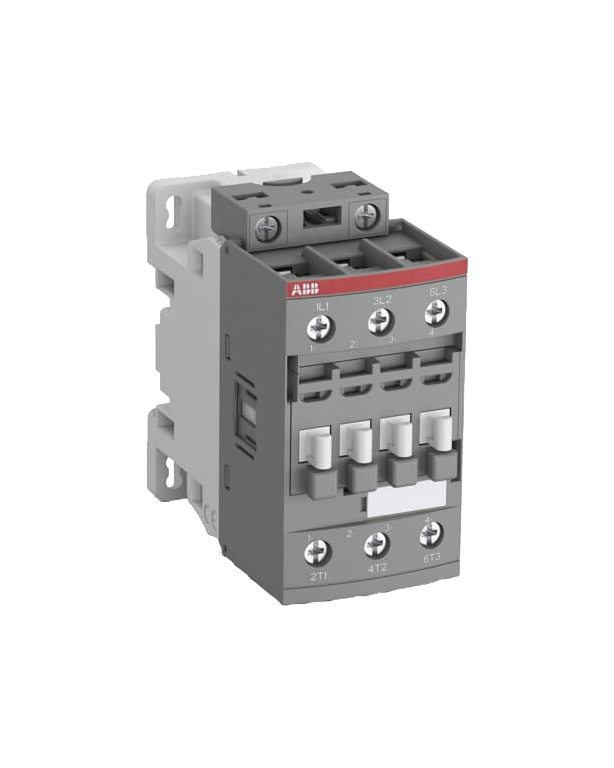

ABB AF26-30-00-11 24-60V50/60HZ 20-60VDC Contactor

ABB AF26-30-00-11 24-60V50/60HZ 20-60VDC Contactor

£100.69 GBP
£100.69 GBP £100.69 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Item Attributes
Item type LV ABB
Parent CONTROL PRODUCTS



General Information

  • Extended Product Type:
    AF26-30-00-11
  • Product ID:
    1SBL237001R1100
  • EAN:
    3471523110915
  • Catalog Description:
    AF26-30-00-11 24-60V50/60HZ 20-60VDC Contactor
  • Long Description:
    The AF26-30-00-11 is a 3 pole - 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 11 kW / 400 V AC (AC-3) or 15 hp / 480 V UL and switching power circuits up to 45 A (AC-1) or 45 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (24-60 V 50/60 Hz and 20-60 V DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
View full details
