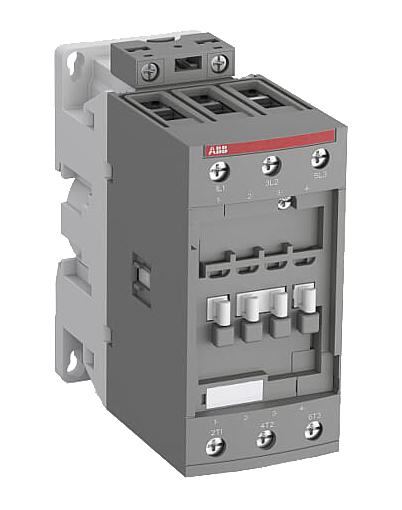

ABB AF65-30-00-13 100-250V50/60HZ-DC Contactor

General Information

• Extended Product Type:

  AF65-30-00-13


• Product ID:

  1SBL387001R1300


• EAN:

  3471523132634


• Catalog Description:

  AF65-30-00-13 100-250V50/60HZ-DC Contactor


• Long Description:

  The AF65-30-00-13 is a 3 pole - 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 30 kW / 400 V AC (AC-3) or 50 hp / 480 V UL and switching power circuits up to 105 A (AC-1) or 90 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
